| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TONGXIANG HENGCHAO |
| Minimum Order Quantity: | 5000 Meters |
| Price: | USD 0~5 Per Meter |
| Packaging Details: | BAGS/CARTONS/PALLETS |
| Delivery Time: | 5-8 Days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 20000 Meters Per Day |
| Material: | PVC Decoration Profile Customized | Color: | Customized |
|---|---|---|---|
| Section: | Customized | Usage: | Customized |
| Length: | 5.95 Meters | Type: | Top Corner |
| High Light: | plastic decorative mouldings,pvc decorative mouldings,customized plastic corner profile |
||

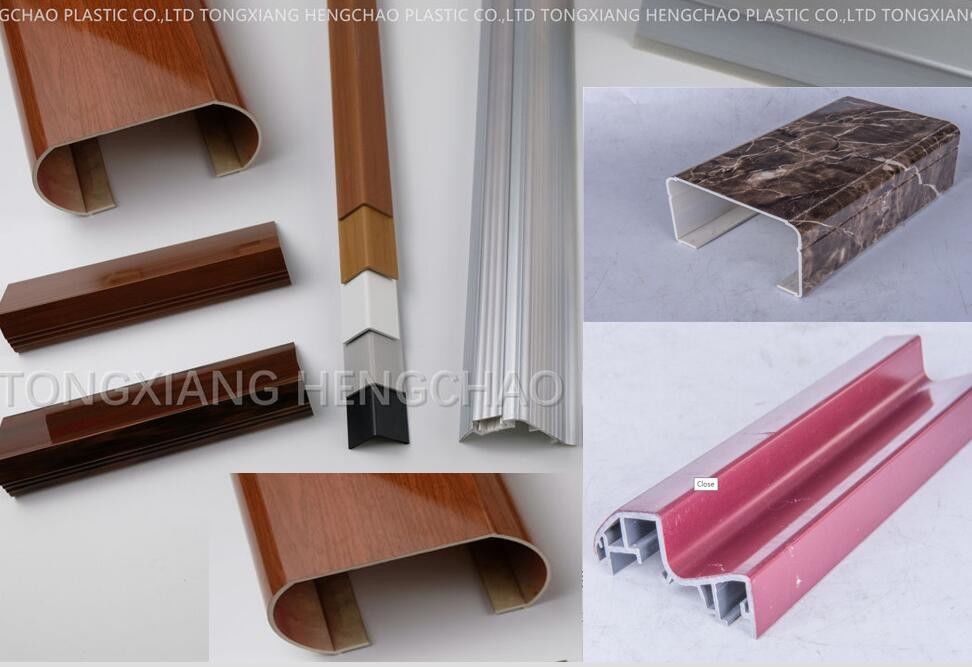

Customized Top Cornice Plastic Corner Profile White With 5.95m Shining Part
PVC Extrusion Profiles Detailed Description
| Main Materials |
PVC resins and calcium carbonate
|
|
| Type | PVC top angle, top corner, accessories for installing pvc wall and ceiling panel | |
| Specification | Length | 5.8m or 5.95m |
|
Suitable thickness
|
6mm-10mm | |
|
Weight
|
120g/m | |
|
Strength
|
≥160N | |
PVC Extrusion Profiles Fire Rate Test
|
Report No.
|
V03 |
Specification |
7mm*5.95m |
||||
|
Product
|
PVC Profile |
Standard |
BS EN 13501-1:2007 |
||||
|
Test Items
|
Measure Unit |
Technical Requirement |
Test Results |
Individual Judgment |
|||
|
Fire growth rate index (Figra)
|
W/s |
C |
≤250 |
105 |
Compliant |
||
|
Lateral flame spread ( LFS)
|
m |
<edge of specimen |
Yes |
Compliant |
|||
|
Total heat release within 600 s(THR 600s)
|
MJ |
≤15 |
11.5 |
Compliant |
|||
|
Flame spread (Fs)
|
Surface |
mm |
≤150 | 30 | Compliant | ||
| Edge | 33 | Compliant | |||||
|
Smoke growth rate (SMOGRA)
|
m2/s2 | S2 | ≤180 | 192 |
S3 Compliant |
||
|
Total smoke production within 600 s(THR 600s)
|
m2 | ≤200 | 666 | ||||
|
Flaming droplests/particles
|
------ | d0 |
No flaming droplets/particles occur within 600s |
Yes | Compliant | ||
|
Ignition of the filter paper
|
------ | No ignition of the filter paper | Yes | Compliant | |||
|
Conclusion
|
The combustion performance of sample is satisfied BS EN 13501-1:2007 about grade C-s3,d0. |
||||||
| Name | PVC Co-extrusion Profile | ||
| Color | White/Black/Grey/Customized | ||
| Material | Virginal PVC Granules | ||
| Surface | Matt/Shiny | ||
| Hardness | Rigid | ||
| Certificate | ISO9001,REACH,Rohs,SGS | ||
| Package | Shrink wrap/Carton/Pallet |
Applications:
· Make the production by your own drawings.
· These production are mainly customized by the customer,like length,color,surface and so on.
· These production could instead of some metal section ,and be used for some structure or decoration parts.
Usage:
· Mainly used as the decoration profile,could instead of metal appearance profile.
· It looks like painted or coated,but it doesn't.
· It is made of co-extrusion,its surface hardness is much better than painting or coating.
Features of Plastic production:
1. Lifetime No Rot Warranty
2. Will not crack, split or warp
3. No Insect Damage and Ready to Install
4. Factory Applied Readi-Finish
5. Low Maintenance
6. Moisture & Termite Proof Material
7. High Energy Efficiency• Repaint able with Oil or Latex Paint
8. Does Not Promote Mold or Mildew
9. Installs with standard wood working equipment
